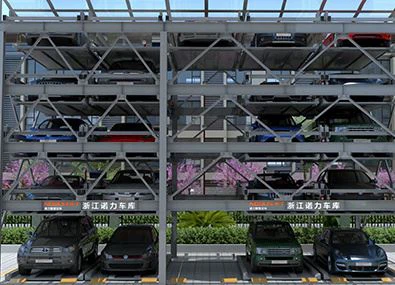

Puzzle Parking System
Car Size
• Max Length (mm): 5300
• Max Width (mm): 2050
• Height (mm): 1550/2050
• Weight (kg): ≤2350
Lifting Speed: 4.5-6.5m/min
Shifting Speed: 8.0-8.5m/min
Control Method: Button/IC Card
The Puzzle Parking System utilizes lifting and traversing carrier pallets for vehicle storage or retrieval. As a market-prevalent solution, it supports flexible aboveground and underground installations adapting to terrain constraints. Structurally, the ground level exclusively traverses, the top level solely lifts, while intermediate levels perform both motions.
Highly scalable up to 7 tiers based on site dimensions, and it delivers rapid deployment, optimized spatial efficiency, smooth low-noise operation, comprehensive safety mechanisms, and cost-effective maintenance.
Technical Specifications
|
Product Types |
Puzzle Parking System (from 2 tiers to 7 tiers) |
|
|
Car Size |
Max Length (mm) |
5300 |
|
Max Width (mm) |
2050 |
|
|
Height (mm) |
1550/2050 |
|
|
Weight (kg) |
≤2350 |
|
|
Vehicle Capacity |
m*(n-1)+1(units) Where m is tier quantity, n is column quantity |
|
|
Lifting Motor |
2.2/3.7kw |
|
|
Shifting Motor |
0.2/0.3kw |
|
|
Lifting Speed |
4.5-6.5m/min |
|
|
Shifting Speed |
8.0-8.5m/min |
|
|
Drive Method |
Motor-driven, Chain or Wire Rope Lifting |
|
|
Control Method |
Button/IC Card |
|
|
Power Supply |
Three-phase 380V 50Hz |
|

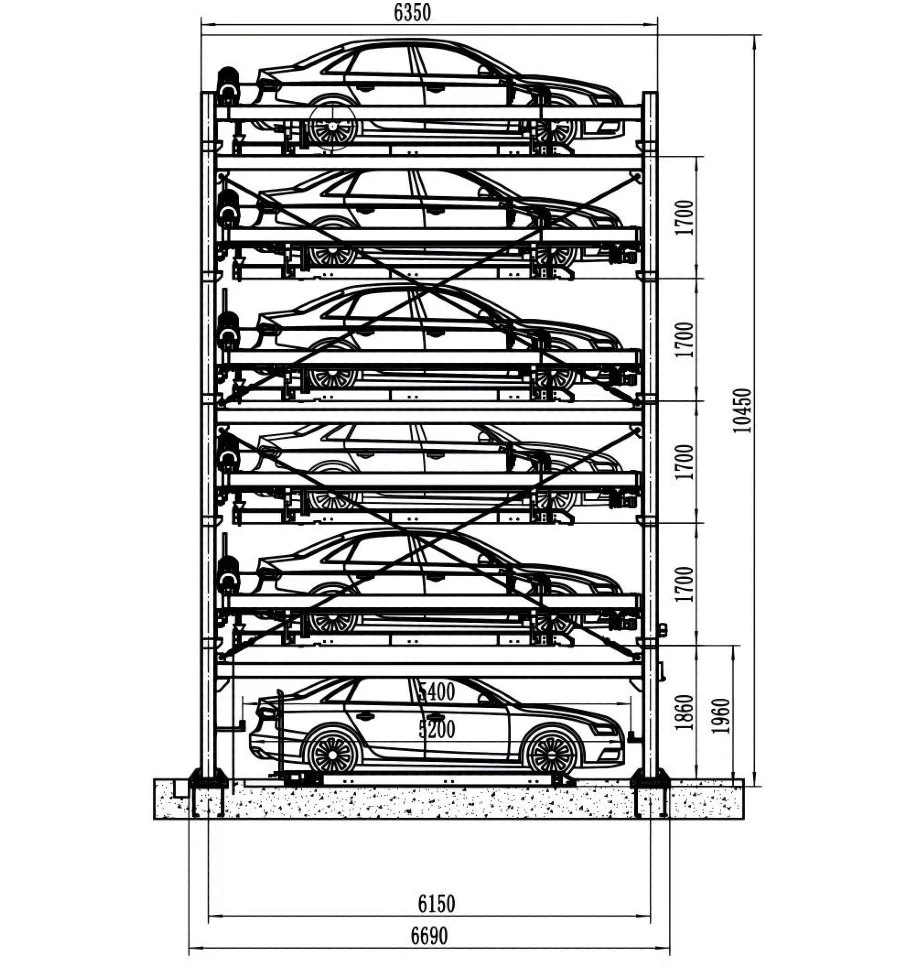

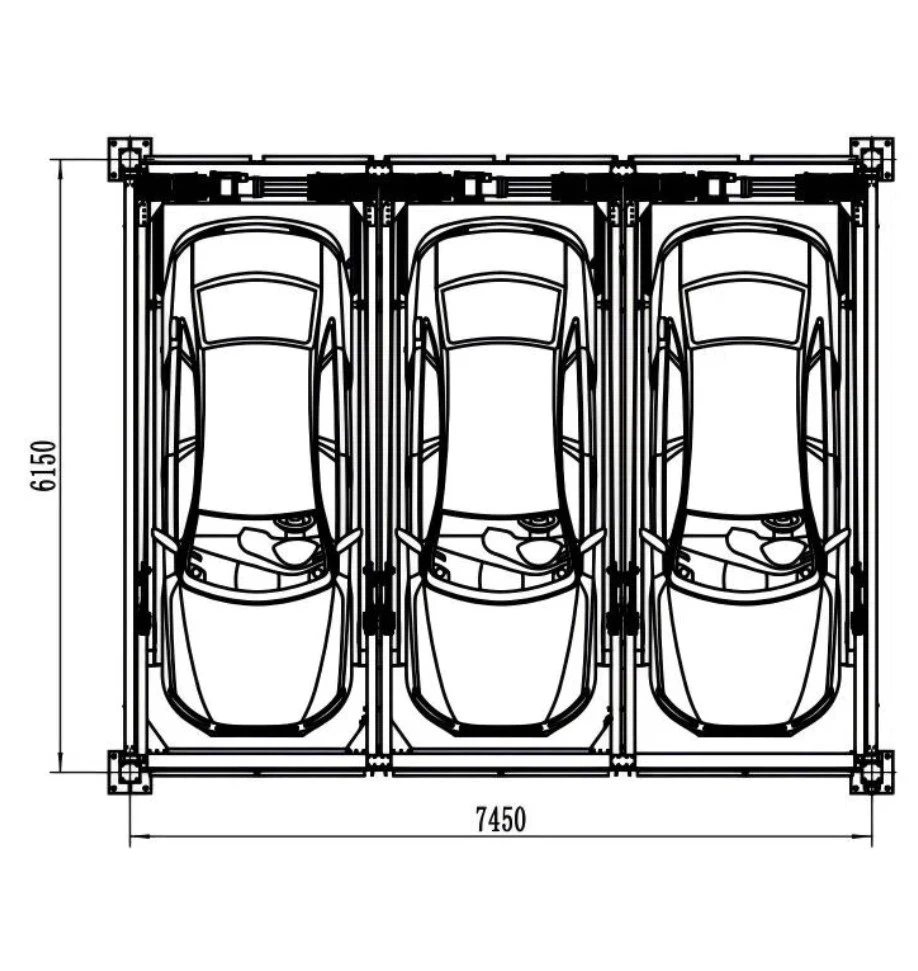

Orthographic Projections

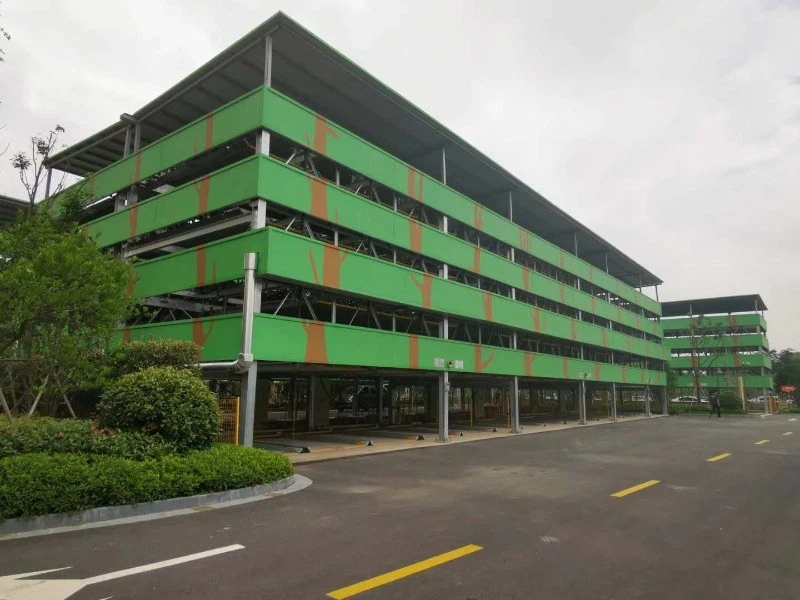

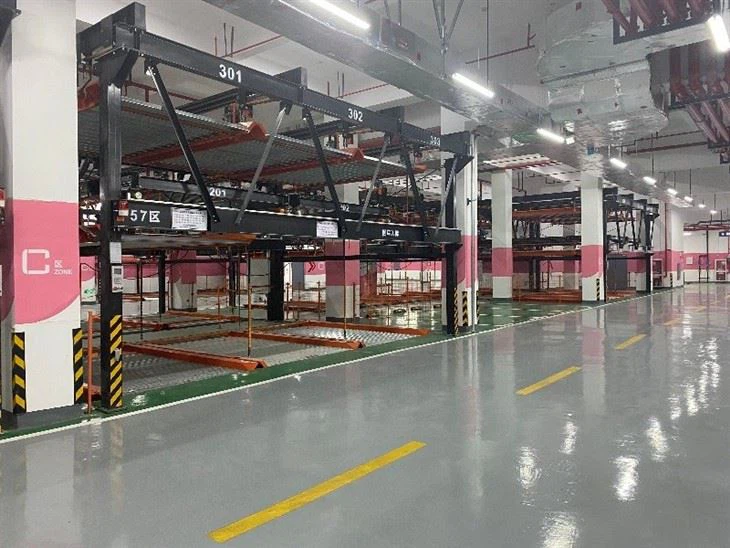

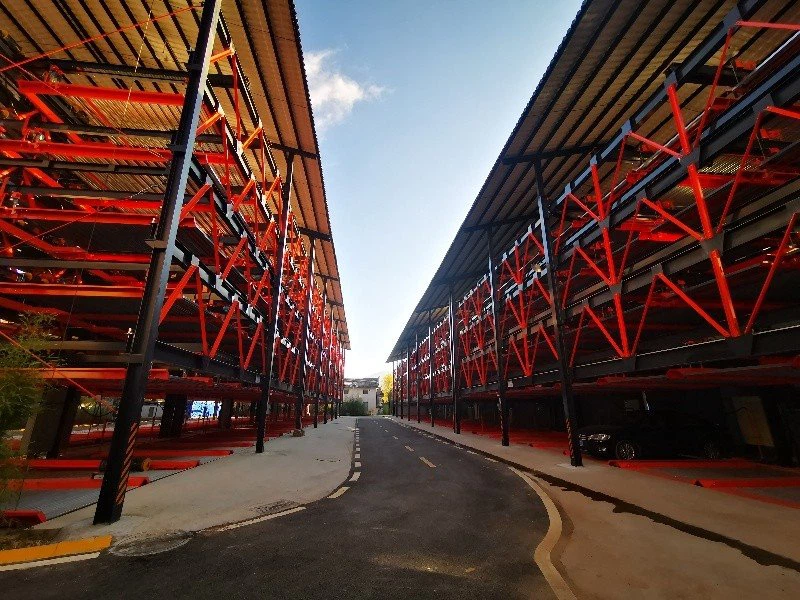

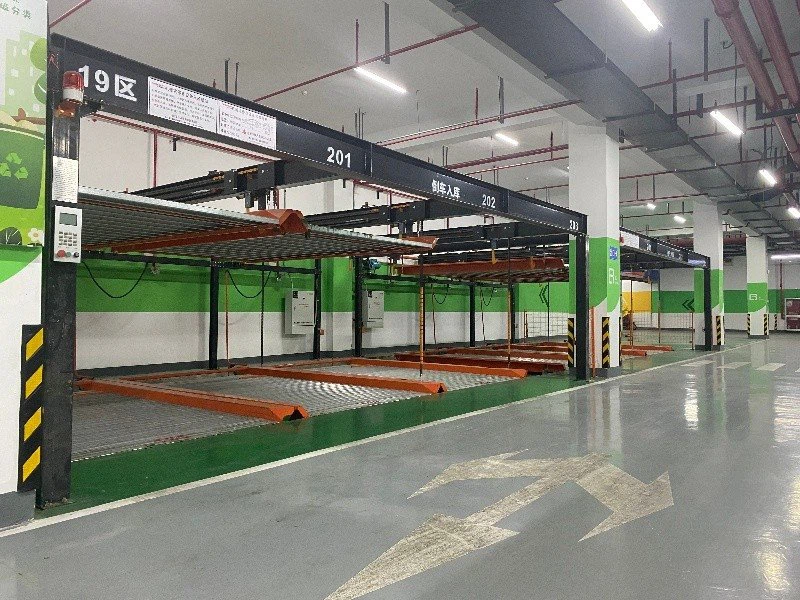

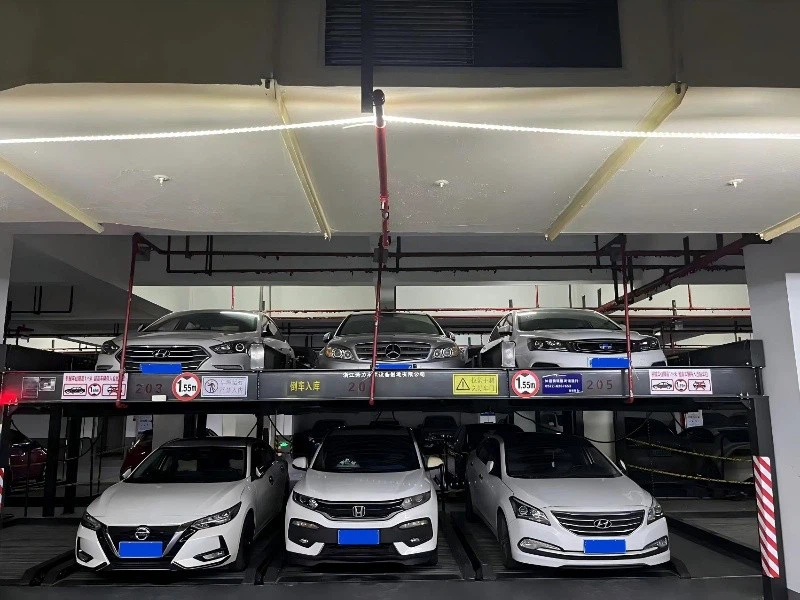

Product Display
Product Advantages
Space Optimization
Multiplies parking capacity within limited spaces through vertical stacking.
Modular Installation
Flexible multi-unit combinations enable scalable configurations for diverse demands.
Simplified Operation
PLC-controlled automated retrieval/deposit processes with intuitive interfaces.
Structural Design
Robust framework ensuring smooth operation, minimal vibration, and fail-safe reliability.
Safety Assurance
Anti-dropping devices with mechanical interlocks securing vehicles during transfers.
Photoelectric Positioning
Laser-guided dimension detection for precise vehicle alignment and orderly parking.
Safety Monitoring
Infrared barriers triggering immediate system halt upon human intrusion detection.
Emergency Response
Hardwired emergency stop buttons for instant shutdown in critical situations.
Market Prevalence
Cost-effective solution with >85% market penetration due to operational simplicity and proven reliability.
Product Classification
The products within the Puzzle Parking System are categorized based on structural design into three main types: Surface-mounted, Underground, and Semi-underground. The surface-mounted garage is favored for its simple structure and ease of installation, making it ideal for locations with ample ground space, such as open-air parking lots and plazas. The underground garage is designed to conserve valuable ground space, although it requires more stringent construction standards, it is well-suited for urban central areas with limited ground space. The semi-underground garage combines both underground and above-ground structures, aiming to balance space utilization and construction complexity, making it an ideal choice for areas that require both ground-level and underground development needs.
